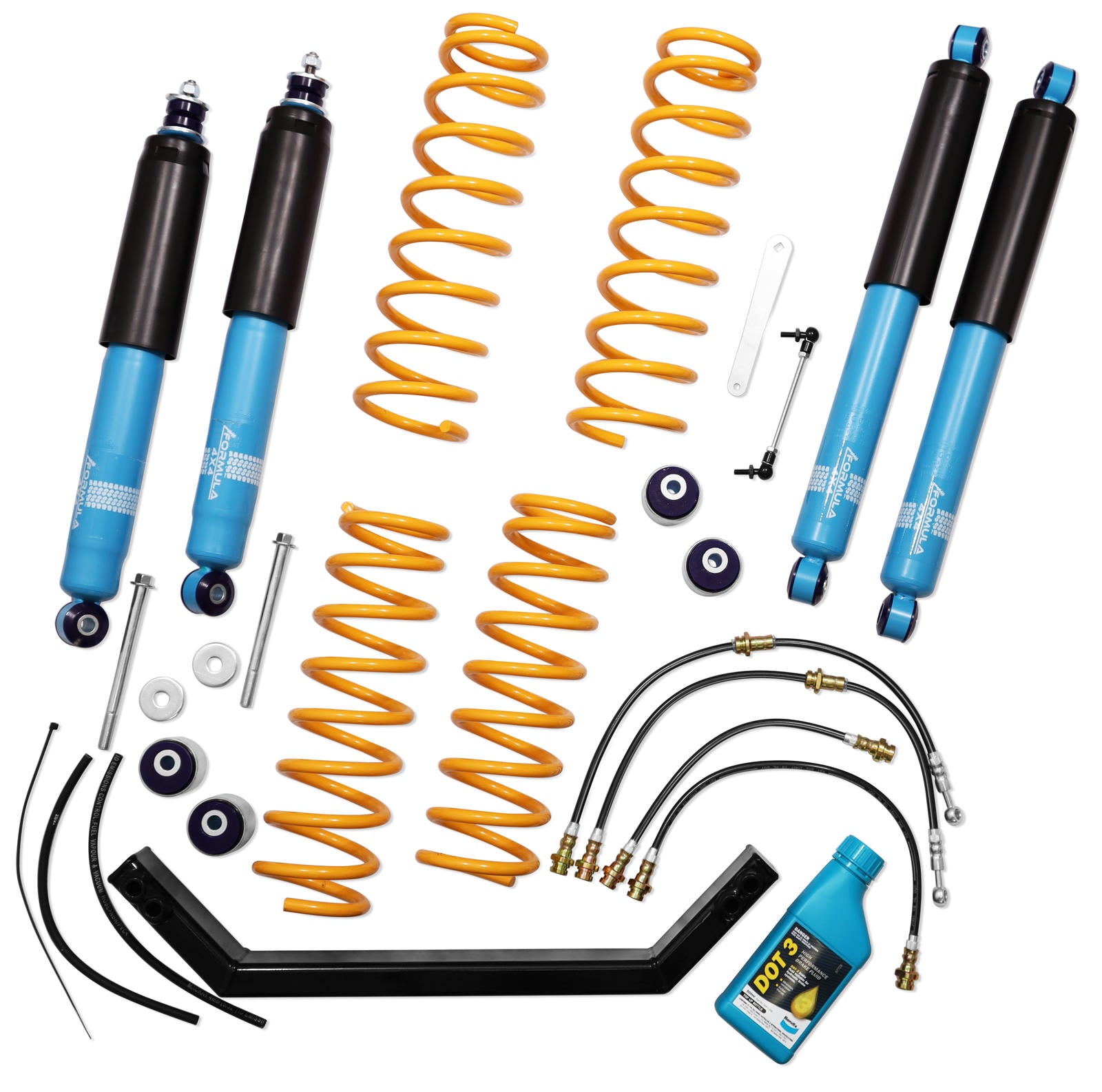

Formula 4x4 Suzuki Jimny 3-Door JC74 2018+ 2"/50mm Lift Kit
Formula 4x4 Enhancement Lift Kit designed to lift the vehicle 50mm and provide the ultimate in handling and control, both on and off road. Where applicable the spring rates of this lift kit can be adjusted to handle different front and rear loads. If you would like to change the specified spring rates of this lift kit, please give us a call, send us a message or leave a comment when you purchase this 4x4 lift kit.

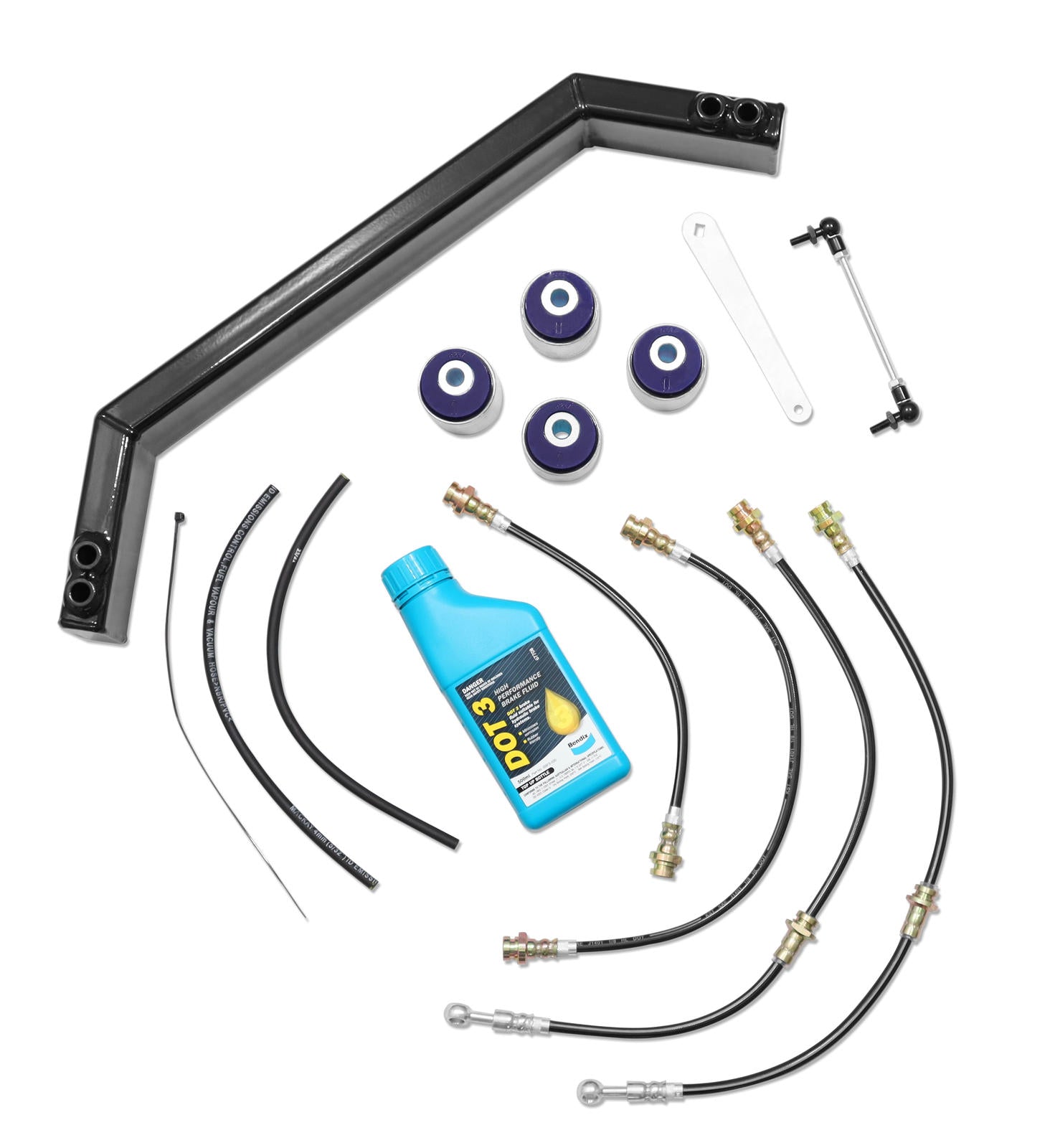

- extended brake lines and vacuum lines to allow full droop with maximum safety
- DOT3 brake fluid for the ease of installation
- replacement cross member to allow droop of drive shaft and strengthen chassis

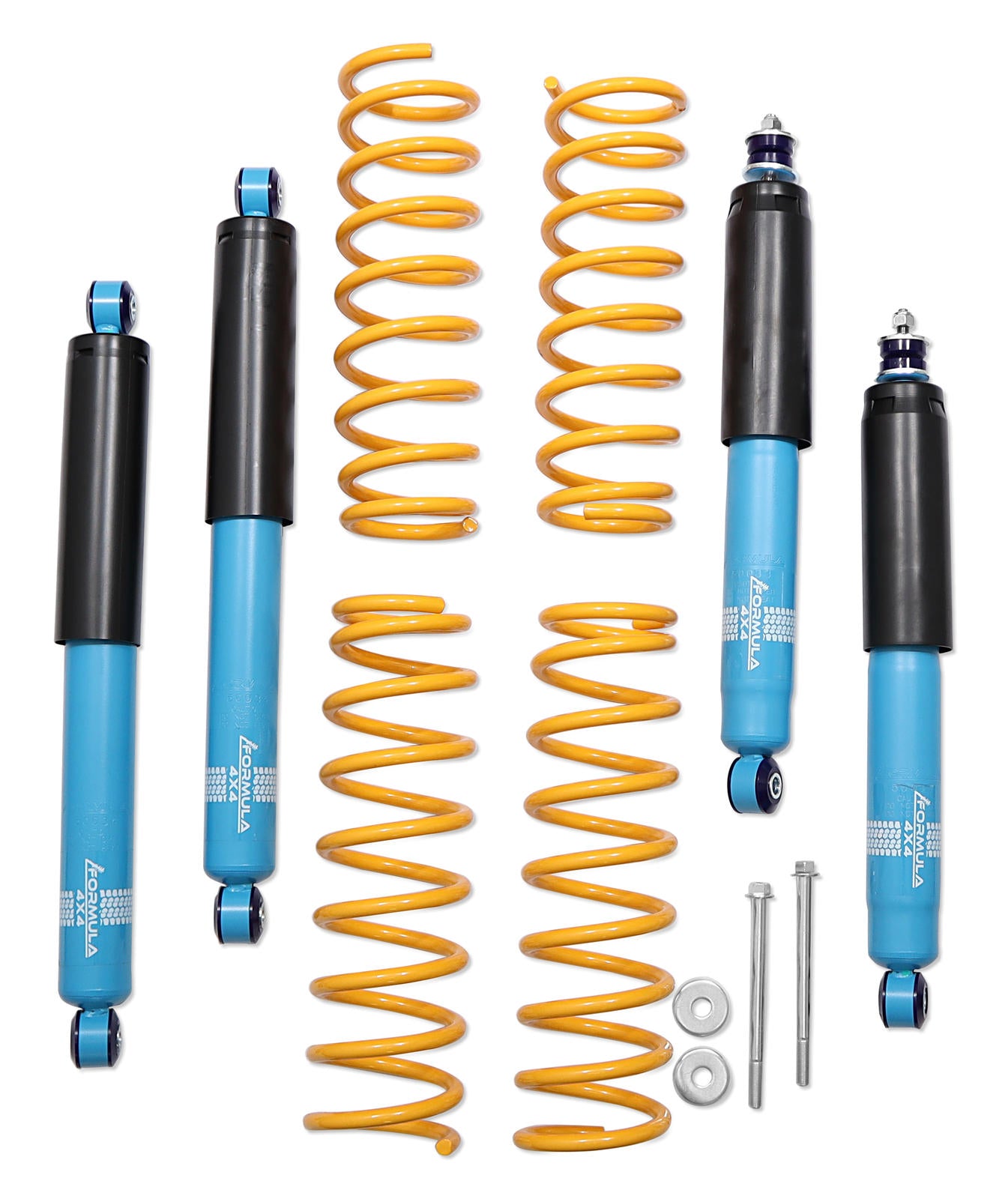

- special tuned shock absorber and spring combination to ensure ride handling and stop coil dislocation
- caster correction bushes to ensure correct caster settings and front diff angle correction for off road driving traction
- Low Pressure Nitrogen for fade free performance
- Designed and built for Australian conditions
- Tested, fitted and supported by 4WD Action
- SuperPro Hybrid bushings on all Front Struts
- Specifically designed for each application
- Valve coding to suit differing spring rates
- Comfortable yet heavy duty 4WD Lift Kit
- Big Bore design for improved heat dissipation
- Tapered pegs on Front Struts for increased strength
- Unlimited Kilometer warranty. Just activate your warranty online. Learn more here
Formula 4x4 Lift Kit Warranty
Formula 4x4 lift kits come with a 5 year / Unlimited Kilometer warranty. Just activate your warranty online. Learn more here.
Lift Kit Fitting Instructions
All lift kits are shipped with a set of lift kit fitting instructions and also include details on upgrading your warranty. The instructions provided are general in nature. It is highly recommended that you get your lift kit installed by a mechanic or suspension technician, preferably with wheel alignment facilities.
This Lift Kit and its Height Variations
Suppliers are often not open about this topic from the initial purchase. However, at Fulcrum Suspensions we believe in honesty and providing customers with all the information relevant to their purchase. The below is not exclusive to Fulcrum Suspensions, every brand of lift kit and every company that sells lift kits understands the below and works through it.
In the title of this lift kit a specific height increase is referenced. Although this is accurate, due to the complicated nature of suspension and numerous varying factors between each vehicle, such as accessories, factory ride height, sag due to age, use and pre-existing conditions. There will always be a tolerance for the final lift height increase that your 4WD receives both front and rear may vary to the one listed in the products title.
If we are provided with all the correct constant load details and we supply the correct springs. Your 4WD will get the correct lift height, within tolerance of as advertised. However due to external factors the tolerance my vary as much as + or – 15mm.
External factors that affect lift heights
- On top of our engineering, we have installed this lift kit on thousands of 4WD’s across Australia and each with various setups. This has given us the data to determine the average lift height increases. The height increase referenced in the title of this lift kit is based on that average number.
- If the vehicle has sagged already due overloaded springs caused by age, use and accessory installation. Then lift height change will likely be greater than the one listed in the products title. However, even with pre-existing sag the lift will take the vehicle back to OE ride heights + the increased lift mentioned.
- Every vehicle that comes off the factory floor has a tolerance variation in factory ride heights. Therefore, the final before and after measurements, both front and rear will always be different from vehicle to vehicle. Which means that even though this lift kit specifies a specific lift height in the title, due to the varying standard ride heights of each vehicle the lift you may receive will vary.
- If you do not provide our team with the correct info then we will not be able to supply you with the corrects springs, which will affect the lift height increase. Be sure that when our team reaches out to confirm all details you give them all info required.
