Xtreme Outback Heavy Duty Clutch Kit for Nissan Patrol GQ - 4.2L TD42

(Performance vehicles, Larger torque increase, Comes with Flywheel)

Ready to ship!


Regular price $2,017.00
Sale price $2,017.00 Regular price
Shipping calculated at checkout.

KNI28596-1AX


What vehicle will this fit?

Description

Heavy Duty Sprung Organic
STAGE 1X


The stage 1X Extra Heavy Duty Clutch Upgrade from Xtreme Outback is designed to provide the ultimate solution for highly tuned vehicles necessitating a significant increase in torque capacity but still requiring driveability for street applications. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions.

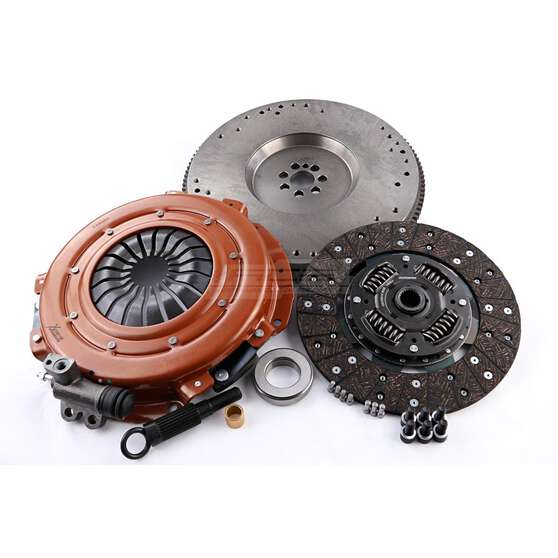

The 500 Series Kit includes heavy duty pressure plate with increased clamping force, sprung or rigid organic friction disc (depending on the application) and a flywheel. The kit also includes alignment tool, release bearing & spigot bearing/bush where required. Xtreme Outback also offer a range of different kit options for those looking for replacement hydraulics or accessories.

The Xtreme Outback range of heavy duty clutch upgrades has been specifically designed and engineered to provide increased clamping force for improved torque holding capability. As a division of Australian Clutch Services, Xtreme Outback takes over 30 years of experience in the Australian clutch market as well as an extensive research and development process to engineer clutch upgrades for everything from daily driven 4x4 vehicles to dedicated rally applications. With a variety of stages and options available, the Xtreme Outback range is ideal for those looking for the highest quality and performance for their 4x4.

***NOTE: Comes with Slave Cylinder***

Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 280
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.4
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street / Offroad / Towing
Clamping Force % Increase 45%
Torque (Nm) Inc FOS 760
Torque (ftlbs) Inc FOS 550
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Weight (kg) 25
